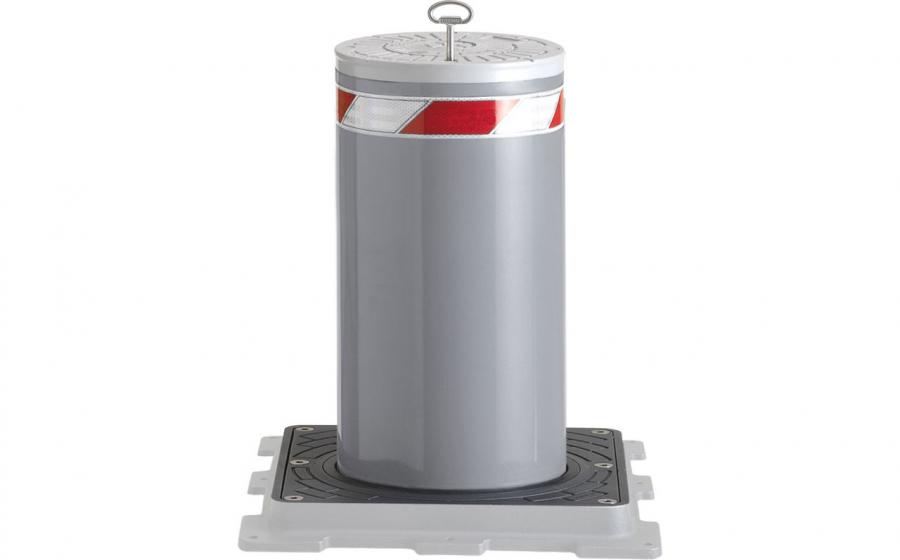

Urban or anti vandalism bollards (height 600mm)

The RB C50 automatic bollards (or active bollards) are retractable anti-ram devices capable of stopping a 3,5T vehicle at a speed of 32km/h (or 1,5T at 64km/h)

Technical specifications

Rated in compliance withPAS68:2013 V/3500(N1)/32/90
IWA 14-1:2013 V/3500(N1)/32/90
ASTM C50Impact resistance250.000 joules
3,5T at 32km/h
1,5T at 64km/hObstacle height600 mmObstacle diameter275 mmFoundation depth1230 mm (or suspended pit)Rising / lowering speed4 / 2.5 secEmergency Fast opening (Rising time)1 secHours / Days cycles300 / 2000

• In case of power failure, the obstacle can be lowered by a manual operation directly on the hydraulic pump. Additional options allow the automatic lowering of the obstacle OR to be lowered from a remote location OR an uninterrupted operation (UPS)
• The operation can be signaled by LEDS on the obstacle, a buzzer, traffic lights or a synchronization with a rising barrier.
• Finishing: the bollard is available in painted steel and in brush stainless steel.
• The hydraulic pump is built in the pit of the bollard
• The control unit is housed in a cabinet which could be up to 80m remote. It’s could be also integrated in a ground retractable cabinet
