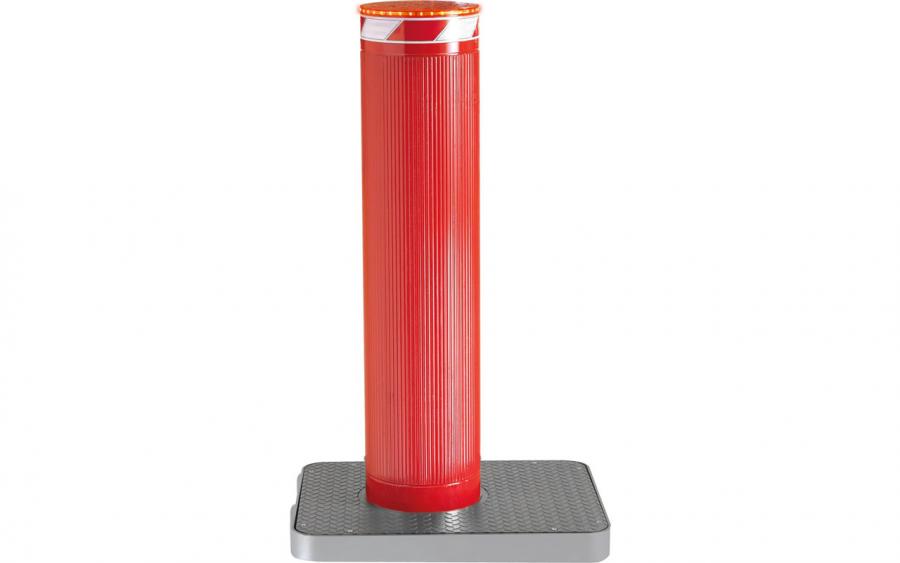

High-security antiterrorist bollards (height 1200mm)

The RB M50 automatic bollards (or active bollards) are retractable anti-ram devices capable of stopping a 7,5T vehicle at a speed of 80km/h (or 3,5T at 112km/h)

Technical specifications

Crash test certifiedPAS68:2013 V/7500(N3)/80/90
ASTM M50/P3Rated in compliance withIWA 14-1:2013 V/7200(N3C)/80/90
DOS K12Impact resistance2.000.000 joules
7,5T at 80km/h
3,5T at 112km/hObstacle height1200 mmObstacle diameter275 mmFoundation depth2000 mmRising / lowering speed5 / 5 sec
Enhanced speed availableEmergency Fast opening (Rising time)1 secHours / Days cycles300 / 2000

• In case of power failure, the obstacle can be lowered by a manual operation directly on the hydraulic pump. Additional options allow the obstacle to be lowered from a remote location OR to be raised (manual pump) OR an uninterrupted operation (UPS)
• The operation can be signaled by LEDS on the obstacle, a buzzer, traffic lights or a synchronization with a rising barrier.
• Finishing: the bollard is available in painted steel (with or without ribs) and in brush stainless steel.
• The hydraulic pump is built in the pit of the bollard
• The control unit is housed in a cabinet which could be up to 60m remote. It’s could be also integrated in a ground retractable cabinet
